Skin Pass Mill

Features and applications

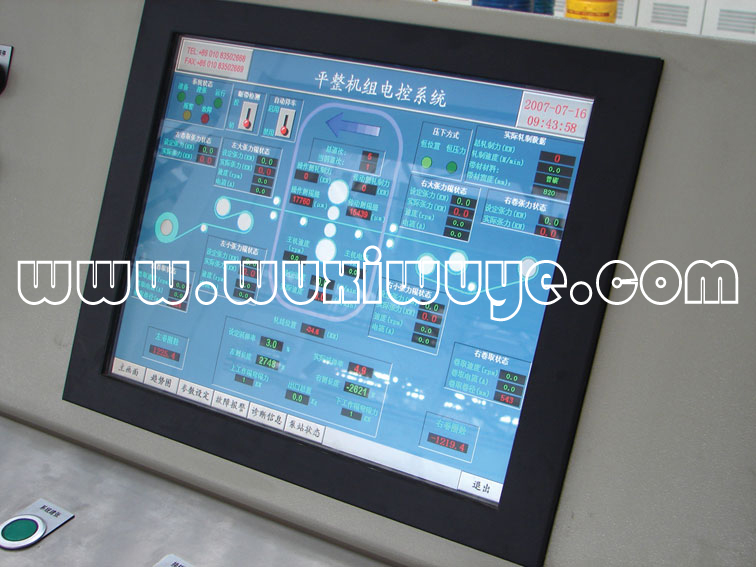

It consists of two series of two rollers and four rollers.It is used for leveling the annealed cold rolling strips in order to improve the machinery functions to enhance the surface hardness,strength and elasticity of CR strips.Meanwhile,the CR strips through the leveler unit can have functions of excellent deep punching,shapes and surface clearness.Four rollers leveler unit for middle and wider coils and plates is equipped with hydraulic AGC pressing down and automatic adjusting rolling elevation lever installations.The working rollers adopt hydraulic reverse bending electro-liquid servo system.Roller”S”,anti-crinkle rollers,and anti-jumping rollers are set up to the front and rear machines with functions of strips transmission automatically and easy operation.Leveling technics such as constant extension,constant rolling force,constant clearance of rollers,and constant tension can come true by computer online control.

Components

Uncoiler → hydraulic shear → entry “S”roller → entry anti-crinkle rollers → four rollers Skin pass mill → exit anti-crinkle rollers → exit “S”roller → coiler

Type φ350×400 φ450×550
Strip thickness 0.3-1.0 0.2-0.8 0.3-1.0 0.2-0.8
Strip width 250-300 350-450
Press down method Electric pressdown Hydraulic Pressureup Electric pressdown Hydraulic Pressureup

Type φ550×
650-750
φ280/φ580×
800-900
Strip thickness 0.32-1.0 0.2-0.8 0.2-0.8
Strip width 550-650 700-800
Press down method Electric pressdown Hydraulic Pressureup

Type φ320/φ650×
900-1000
φ330/φ700×
1200-1400
Strip thickness 0.2-0.8 0.2-0.8
Strip width 700-900 1000-1200
Press down method Hydraulic Pressureup
